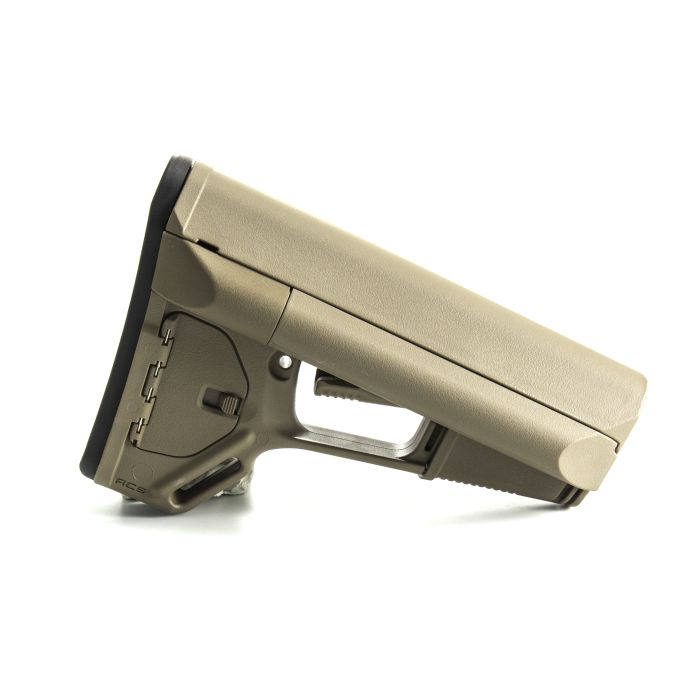

ACS™ Carbine Stock – Mil-Spec - FDE

The Magpul ACS (Adaptable Carbine/Storage) – Mil-Spec Model is a drop-in replacement buttstock for AR15/M4 carbines using mil-spec sized receiver extension tubes. Dual, rear accessible, water-resistant battery storage tubes and an integral storage compartment in the butt of the stock provides multiple storage options.

Similar to the Magpul CTR®, the ACS also features an anti-snag release latch to prevent accidental activation along with a supplemental friction lock system that minimizes excessive stock movement for enhanced weapon stability and accuracy*. The ACS comes standard with a 0.30" thick rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.



Made in U.S.A.



FEATURES

  • Mounts on mil-spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others (please see the note below)
  • Sloping cheek weld provides a wide contact surface for user comfort
  • Two water-resistant battery storage tubes located on the left and right sides of the stock
    • Each tube will store up to three CR123 lithium or two AA batteries
    • Tubes are accessible from the rear via a tethered, hand-removable rubber plug
  • Storage compartment in tail of stock with positive latching access door on right hand side
  • Supplemental friction lock minimizes accuracy robbing wobble*
  • Shielded release latch prevents snagging and accidental operation
  • Premium chrome-silicon lock spring provides positive locking and long service life
  • Replaceable 0.30" Rubber Butt-Pad offers an anti-slip surface and increases impact protection
  • Compatible with Magpul ASAP®, ASAP® QD, and other receiver-mount sling attachments
  • Sling Mounts
    • Mid – Included reversible Sling Mount Kit – TYPE 3 fits up to 1.5" push-button swivels (swivel not included)
    • Rear/Bottom - 1.00" sling loop

ACS™ Carbine Stock – Mil-Spec - FDE Specification

PLATFORM:  AR10, AR15, M4, M16, M110, SR25
COMPATIBILITY:  Mil-Spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others
LOP, M4 COLLAPSED:  ~11.6 in.
LOP, M4 EXTENDED:  ~14.9 in.
LOP ADJUSTMENT RANGE:  3.3 in.
LENGTH, MAX:  8.0 in.
WEIGHT:  14.1 oz.
WEIGHT, W/ RECEIVER EXTENSION:  18.1 oz.
WIDTH, MAX:  2.2 in.
OTHER SPECS:

* Friction lock performance may vary depending on the host receiver extension's dimensional tolerances.

** Specifications based on standard-length (flat-back) M4 Carbine Receiver Extension and may vary depending on tube manufacturer.

NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): Mil-Spec and Commercial-Spec. If you have a Commercial-Spec extension on your rifle you will need to swap it over to a Mil-Spec size tube to utilize this stock.

ACS™ Carbine Stock – Mil-Spec - FDE Notes

NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a commercial-spec extension on your rifle, make sure to order the Commercial-Spec ACS.



ITAR
International Traffic in Arms Regulations Controlled Product
