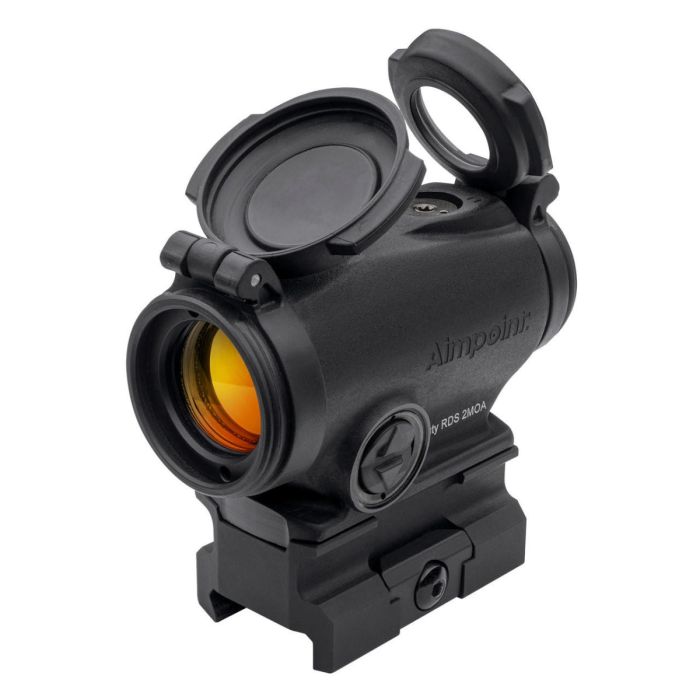

Aimpoint® Duty RDS

The Aimpoint® Duty RDS is a compact, high-grade reflex optic that was designed to meet the demanding needs of the modern law enforcement officer.  The Duty RDS™ (Red Dot Sight) offers a bright, crisp 2 MOA dot that’s ideal for short to medium range target engagements. All new windage and elevation adjustments are flush mounted and waterproof, eliminating the need for protective caps. The turrets provide audible “clicks” when zeroing the optic. The dot brightness intensity switch is a digital keypad with intuitive push buttons that can easily be manipulated while wearing gloves.



The pressure forged aluminum alloy housing provides durability against extreme abuse and drastic temperature changes. The Duty RDS comes with a one-piece torsion nut mount that attaches to MIL-STD-1913 picatinny rails. The sight is fully compatible with all generations of night vision devices. The Duty RDS withstands extremely tough handling and offers Aimpoint quality at a more accessible price point.



UNIQUE FEATURES

  • 2 MOA dot size
  • 30,000 hours (over 3 years) of constant operation on setting 7
  • 4 night vision compatible settings, and 6 daylight settings
  • Weight 108 g (3.8 oz) sight onlySubmersible to 25 meters (80 feet)
  • Advanced optical lenses for enhanced light transmission and ultimate dot clarity
  • Height of Optical Axis 39 mm (1.5 in) measured from top surface of mounting platform
  • One-piece Torsion Nut Mount - Integral Picatinny-style base allows easy attachment to any picatinny rail
  • Flip-up lens covers – front is solid, and rear is transparent – allowing the user to shoot with both eyes open and lens caps closed in an emergency situation
  • Advanced optical lenses for enhanced light transmission and ultimate dot clarity
  • Windage and elevation adjustments are flush mounted and waterproof - eliminating the need for protective caps
  • Hard anodized non-reflective surface
  • A compact, high-grade red dot reflex optic designed for the modern law enforcement officer
View More +

Aimpoint® Duty RDS Specification

PHYSICAL SPECIFICATIONS
  • Weight 5.7 oz
  • Weight - Sight Only 3.8 oz
  • Size L x W x H (Sight Only) - 2.7 x 1.5 x 1.7 in
  • Material Housing and Tube - High Strength Aluminum
  • Surface Finish Housing - Anodized, Semi-Matte
  • Color Housing - Black
  • Lens Covers - Flip-up Lens Covers, Front Solid and Rear Transparent
  • Material Lens Covers - Thermoplastic Elastomer (TPE)
  • Material Mounting Solution - Aluminum
  • Height of Optical Axis-  39 mm / 1.5 in measured from top surface of mounting platform
  • Adjustment 1 Click = 15 mm at 100 m / ≈ 0.5 in at 100 yds
    • * MOA (minute of angle) 1 MOA ≈ 30 mm at 100 meters ≈1 in at 100 yards


  • Submersible to 25 m / 80 ft
  • Laser No Laser Emission
  • Radioactive Material None
  • Temperature Range Operation - 45°C to + 71°C / - 49°F to + 160°F
  • Temperature Range Storage - 51°C to + 71°C / - 60°F to + 160°F
  • Temperature Shock Operable after a temperature shock between - 45°C and + 71°C / - 49°F and + 160°F
  • Humidity - Operable during and after Humidity. Limits: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
  • Shock - Operable before and after shock. Limits: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
  • Vibration - Withstands vibration. Limits: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
  • Chemical Resistance Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.

  • Battery Life 30,000 h at daylight setting 7 (15,000 Lux, room temperature)
  • Battery Type CR2032, 3V, Lithium
  • Battery Quantity 1
  • Battery Size CR2032
  • Power Switch Push Buttons
  • Night Vision Device (NVD) Settings 4
  • Daylight (DL) Settings 6
  • Start Setting Position 7


  • Dot Size 2 MOA
    • * MOA (minute of angle) 1 MOA ≈ 30 mm at 100 meters ≈1 in at 100 yards
  • Magnification 1X - No Magnification
  • Night Vision Device (NVD) Compatible Yes
  • Transmission Average >85 % in the range 420-620 nm
  • Eye Relief Unlimited
  • Diode LED (Light Emitting Diode) totally eye safe
  • Dot Color Red
  • Light Source Wavelength 650 nm red light
  • Optical Coating Anti-reflex coating all surfaces and multilayer coating objective lens
  • Optical Signature No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD
  • Clear Aperature 18 mm / 0.7 in
  • Parallax Absence of parallax - No centering required


  • Operating Principle Reflex collimator sight - red dot sight


Aimpoint® Duty RDS Notes

INCLUDES: Aimpoint 39mm One-piece TNP Mount & Spacer



SIGNATURE REQUIRED WHEN SHIPMENT IS RECEIVED



GEISSELE OPTIC MOUNT SOLD SEPERATLEY



GET A SUPER PRECISION RED DOT OPTIC MOUNT FOR 70% OFF WITH PURCHASE OF THIS OPTIC!

The Super Precision T1 Mount Series was developed specifically to work with the Aimpoint Micro® Series sights and similarly mounted red dot optics. These mounts are precision machined from a single piece of 7075-T6 high strength aluminum and are available in absolute co-witness, lower third co-witness and 1.93" height options.

They are available in black type 3 hard coat anodize as well as our proprietary DDC (Desert Dirt Color) type 3 hard coat anodize. Utilizing Geissele’s update of the classic nut and bolt method, this mount will attach your red dot to your weapon with 1,400 pounds of clamping force, and features 3 shear lugs for maximum rigidity and return to zero.
