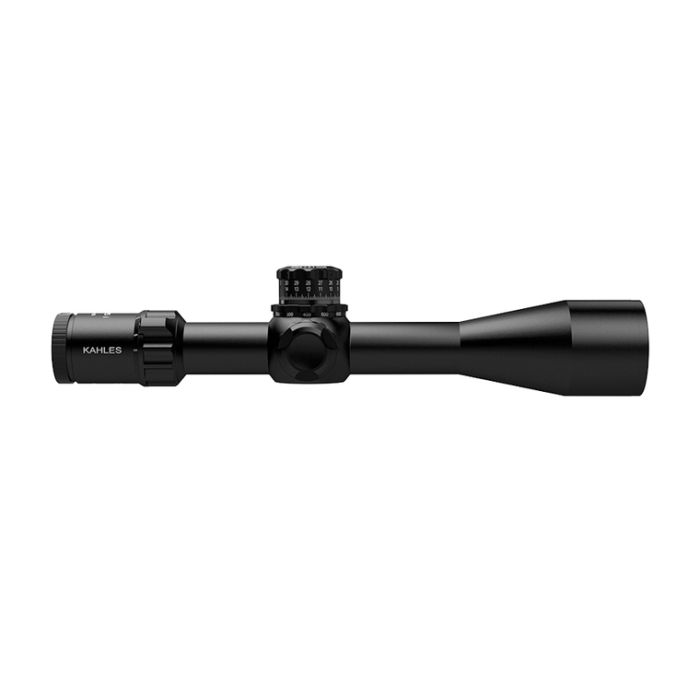

Kahles® K525i CWW 5-25x56 SKMR4
The K525i combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1 st focal plane and the unique TWIST GUARD windage.
- Maximum optical performance – field of view, high contrast image, high definition
- Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
- Optional left or right side windage
- Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
- Innovative TWIST GUARD windage (patented)
- Precise illuminated reticle in 1 st focal plane
For more information about the K318i, Click Here.
GET A SUPER PRECISION MAGNIFIED OPTIC MOUNT FOR 70% OFF WITH PURCHASE OF THIS OPTIC!
The AR-15/M4 Super Precision series of scope mounts are optimized for use with an AR-15/M4 upper. The mounting surface spans 7 picatinny sections and utilizes 4 shear lugs. These mounts use Geissele’s update of the classic nut and bolt method for clamping the mount to the picatinny rail, which is the most secure method of attaching your scope to your weapon. Each nut and bolt combination provides 1,400 pounds of clamping force, much more than any lever mounting arrangement.
The Geissele Super Precision Mounts are made from 7075-T6 High Strength Aluminum. To create a mount with the best possible return to zero we machine the entire mount from a single piece of billet aluminum. This allows us to add pockets and ribs throughout the mount for added strength and rigidity. It allows us to line bore the caps to each another and then serialize the caps to the body. The line bore operation creates the best possible fit to the body of your scope so that you can apply proper torque without fear of crushing or damaging the body of your scope. Another advantage of machining from a single piece of aluminum is that we are able to create a mount with cap locations that will suit a wide variety of scopes.
These mounts are available in Standard, Extended, and Hyper Extended lengths, in either black type 3 hard coat anodize or our proprietary DDC (Desert Dirt Color) type 3 hard coat anodize.
Kahles® K525i CWW 5-25x56 SKMR4 Specification
|MAGNIFICATION:||5 - 25|
|OBJECTIVE LENS DIAMETER:||56mm|
|EXIT PUPIL:||9.5 - 2.3mm|
|FIELD OF VIEW:||7.1 - 1.5m/100m|
|DIOPTER COMPENSATION:||+2 / -3.5dpt|
|TWILIGHT FACTOR (DIN 58388):||16.7 - 37.4|
|IMPACT CORRECTION PER CLICK:||0.1 MRD | 1/4 MOA|
|ADJUSTMENT RANGE (E/W):||104.4/46.8 in/100 yds | 13 MIL | 100 / 45 MOA|
|PARALLAX ADJUSTMENT:||20m till ∞|
|WEIGHT:||970g | 34.2oz|
|MANUFACTURER WARRANTY:||10 Years|
Kahles® K525i CWW 5-25x56 SKMR4 Notes
OPTIC MOUNT SOLD SEPERATLEY
SIGNATURE REQUIRED WHEN SHIPMENT IS RECEIVED
Please Note: The box has been opened to confirm serial number.
