MOE® Carbine Stock – Mil-Spec - FDE
MOE® Carbine Stock – Mil-Spec - FDE

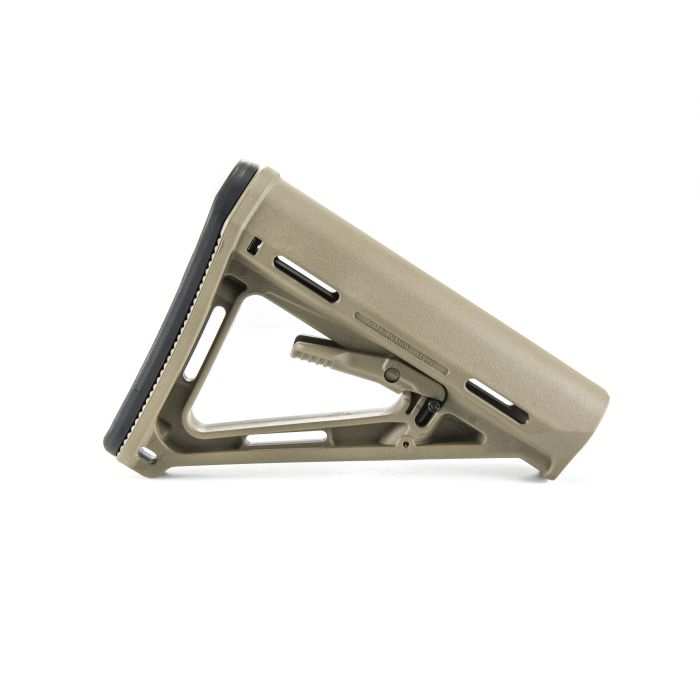

The MOE Stock – Mil-Spec Model (Magpul Original Equipment) is a drop-in replacement buttstock for AR15/M16 carbines using mil-spec sized receiver extension tubes. Designed for light, fast action the streamlined A-frame profile avoids snagging and shields the release latch to prevent accidental activation.
The Mil-Spec Model includes a standard 0.30" thick rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.
Made in U.S.A.
FEATURES
- Mounts on mil-spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, LMT, Ruger, S&W, SIG, and others (please see the note below)
- Sloping cheek weld combines a slim profile with user comfort
- Shielded release latch prevents snagging and accidental operation
- Premium chrome-silicon lock spring provides positive locking and long service life
- Side mounting slots accept optional cheek risers for NON AR15/M4 applications
- Removable 0.30" Rubber Butt-Pad offers an anti-slip surface and increases impact protection
- Compatible with Magpul ASAP®, ASAP® QD, and other receiver-mount sling attachments
- Sling Mounts
- Rear/Bottom - 1.25" sling loops
- Toe - Lanyard hole for custom para-cord rigs
MOE® Carbine Stock – Mil-Spec - FDE Specification
| PLATFORM: | AR10, AR15, M4, M16, M110, SR25 |
| COMPATIBILITY: | Mil-Spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, LMT, Ruger, S&W, SIG, and others |
| LOP, M4 COLLAPSED: | ~10.5 in. |
| LOP, M4 EXTENDED: | ~13.8 in. |
| LOP, ADJUSTMENT RANGE: | 3.3 in. |
| LENGTH, MAX: | 6.9 in. |
| WEIGHT: | 8.0 oz. |
| WEIGHT, W/RECEIVER EXTENSION: | 12.0 oz. |
| OTHER SPECS: |
* Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer. NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): Mil-Spec and Commercial-Spec. If you have a Commercial-Spec size extension on your rifle, make sure to order the Commercial-Spec MOE. |
MOE® Carbine Stock – Mil-Spec - FDE Notes
NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a commercial-spec size extension on your rifle, make sure to order the Commercial-Spec MOE.
ITAR
International Traffic in Arms Regulations Controlled Product
