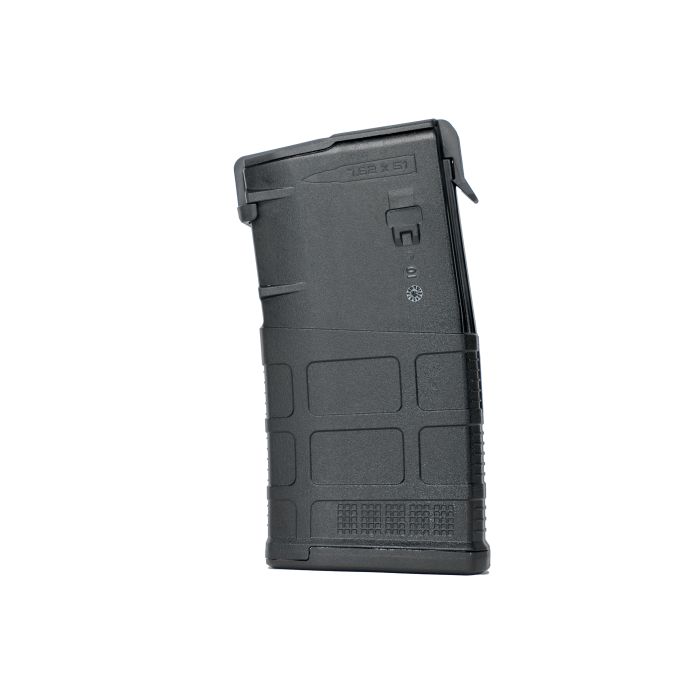

PMAG® 20 LR/SR GEN M3®, 7.62x51

The 7.62x51 NATO (.308 Winchester) PMAG 20 LR/SR GEN M3 is a lightweight, cost effective, highly reliable magazine for SR25/M110 pattern rifles. It features true 20-round capacity, a constant-curve body, an anti-tilt follower, and a snap on impact / dust cover.

The GEN M3 PMAGs feature a long-life stainless steel spring, an anti-tilt, self-lubricating follower, and constant-curve internal geometry for reliable feeding.

Low profile ribs and an aggressive front and rear texture give positive control of the GEN M3 in all environments, and a paint pen dot matrix at the bottom panel of the body to allow easy marking by the end user for identification. The easy-to-disassemble flared floorplate aids extraction and handling of the magazine while providing improved drop protection, and better compatibility with tight double and triple magazine pouches. An included pop-off impact / dust cover can be used to minimize debris intrusion and protect against potential damage to the top cartridge during storage and transit. Its simple, tool-less disassembly makes for for easy cleaning and maintenance.

Designed specifically for SAAMI-spec ammunition, the PMAG 20 LR/SR GEN M3 is less than half the weight of standard issue steel magazines and maintains a service life round count approximately equal to the rifle barrel itself.

Made in the USA.





View More +

PMAG® 20 LR/SR GEN M3®, 7.62x51 Specification

TECHNICAL SPECIFICATIONS

Caliber   7.62 x 51
Platform   AR10, M110, SR25
Capacity   20
Compatibility   Armalite AR-10A, Colt LE901-16S, CORE Rifle Systems CORE30,  JP Enterprises LRP-07, KAC SR25, LaRue OBR, Les Baer .308,  LMT .308 MWS, LWRCI REPR, Mega Arms MATEN, Noveske Gen  III N6, POF P-308, Ruger SR-762, Ruger Precision Rifle, S&W  M&P10, SIG716, others
Other Specs

 Optimized for use with SAAMI-spec 7.62x51/.308 Winchester ammunition.

 *NOTE: Compatible with older model Bushmaster .308 ORC, Remington R-25, and DPMS LR308 rifles, but not optimized for bolt lock functionality with newer models based on the DPMS GII design. NOT compatible with Armalite AR-10B, Springfield Armory M1A, Rock River Arms LAR8, FN SCAR 17S, PTR-91, HK417 or any other rifles that utilize M14, FN FAL, or HK 91/G3 patterned magazines.

 To accommodate longer than SAAMI-spec match ammunition, this magazine may not drop free from all makes of lower receivers.





PMAG® 20 LR/SR GEN M3®, 7.62x51 Notes

ITAR - International Traffic in Arms Regulations Controlled Product

EXPORT NOTICE: This is an item controlled for export by the Export Administration Regulations (EAR) under the Commerce Control List (CCL). These controls take the form of export regulations and license requirements.

PLEASE NOTE: Certain U.S. jurisdictions restrict firearm magazines sales.
