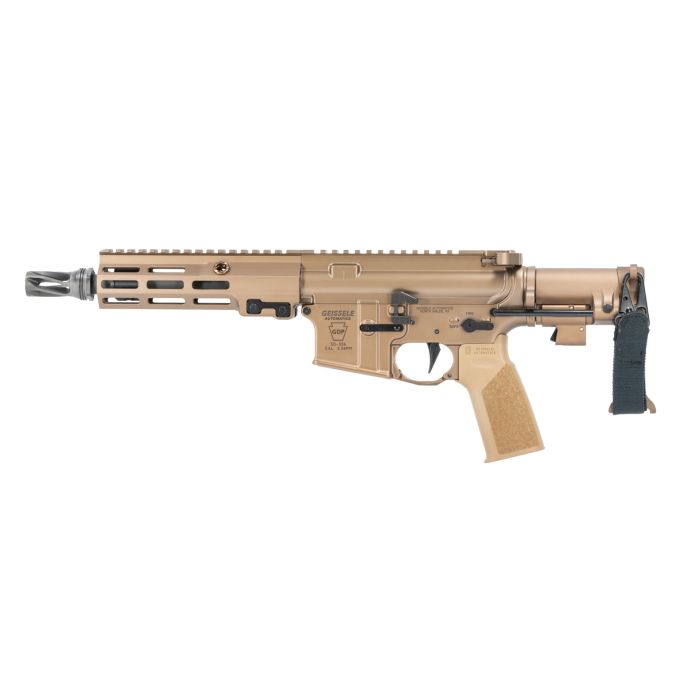

GDP 8" 5.56MM - DDC (Pistol)
GDP 8" 5.56MM - DDC (Pistol)
Compact, lightweight and easy to maneuver, the Geissele Defense Pistol (GDP) maintains the well-known performance and reliability of the Super Duty platform in a package ideal for confined spaces and tight storage situations.
The dual-telescoping GDP brace intuitively opens by simply pulling to the rear and can be deployed from its stowed position immediately and effortlessly. The brace has two solid-lock positions for deployment and requires the deliberate, but simple use of the trigger and detent mechanisms to collapse. The GDP brace utilizes a sturdy Velcro strap for one-handed support that attaches with two ITW C.L.A.S.H. Hooks (Conventional Latch Attachment Snap Hook). The GDP brace design allows unimpeded access to all firing controls even when fully collapsed.
Reliability and shooting performance are at the forefront of the GDP design. Utilizing the patented Geissele Phased Array® gas system, the GDP is precisely balanced to optimize the 8” barrel length. Geissele Tri-Port™ System works in concert with the monolithic bolt carrier buffer system and custom length Super 42® braided buffer spring to achieve surprisingly smooth and controllable recoil impulse. The barrel is Cold Hammer Forged and chrome-lined with a tapered profile, sporting the HUXWRX Flash Hider -QD 5.56 for easy mounting of the patented HUXWRX Flow series of suppressors.
The Forged Stressproof Bolt® is made from Carpenter 158+, directly developed with Carpenter Steel metallurgists to create a material that is cleaner and has less impurities. This makes the Stressproof Bolt® stronger and more fatigue resistant, capable of 5 times the life of a mil-spec bolt.
The GDP features the proven controls and components of the Super Duty line, including the SSA X® trigger, MK16 rail, Airborne Charging Handle, Super Configurable Safety, Maritime Bolt Catch, Anti-Strike Super Compact Gas Block and ergonomic A17 grip.
For serious use in a remarkably small package, the GDP redefines the personal defense platform.
GDP 8" 5.56MM - DDC (Pistol) Specification
| LENGTH COLLAPSED: | 21 3/4" |
| LENGTH EXTENDED: | 27 1/4" |
| WEIGHT: | Approx. 5.5 lbs |
| CALIBER: | 5.56MM |
| COLOR: | DDC |
| LOWER RECEIVER: | GFW Semi-Auto Lower Mil-Spec |
| UPPER RECEIVER: | M4A1 Upper Receiver |
| BOLT CARRIER GROUP: | GFW Bolt Carrier / Buffer with M4 Bolt Assembly |
| BOLT: | Geissele Stressproof Bolt® |
| RAIL: | 7" MK16 Handguard Center Tab, DDC |
| BARREL: | 8" CHF, Chrome-Lined, Geissele Tapered Profile, 1-7 Twist |
| GAS LENGTH: | Custom Pistol length |
| GAS BLOCK: | Anti-Strike Super Compact Gas Block |
| GAS PORT : | Geissele Phased Array® w/ Geissele Tri-Port™ System |
| CHARGING HANDLE: | Geissele Airborne Charging Handle (ACH®) |
| MUZZLE DEVICE: | HUXWRX Flash Hider- QD 556 |
| MUZZLE THREAD: | 1/2 x 28 |
| TRIGGER: | SSA X® Wide Body Lightning Bow® Trigger |
| SAFETY: | Super Configurable Safety Selector |
| LOWER PARTS KIT: | Ultra Duty® Lower Parts Kit |
| BUFFER ASSEMBLY: | Proprietary Integral Buffer w/ Super-42® (GFW length) |
| BUFFER TUBE: | GFW Receiver Extension |
| STOCK: | GDP Pistol Brace |
| GRIP: | Geissele A17 Reduced Angle Rifle Grip |
What is Geissele Nanoweapon®?
Geissele Nanoweapon® (also known as Picatinny DSL) is a family of Durable Solid Lubricant coatings which was developed by ARDEC. It is available exclusively from Geissele Automatics. We continued the development of Picatinny DSL so that its level of corrosion, wear and abrasion resistance is currently unmatched among firearm coatings. Nanoweapon® is applied at low temperatures so that the underlying metallurgy of the part is unaffected by the application process. Our coating also has a surface hardness roughly equivalent to synthetic diamond. This makes Geissele Nanoweapon® harder than sand, easily rejecting carbon and making cleaning a breeze, on top of allowing the firearm to operate normally with less lubrication.
GDP 8" 5.56MM - DDC (Pistol) Notes
DISCLAIMER: This product does not include the optic, scope mount and magazine.
This product will only ship to an FFL (Federal Firearms License Dealer).
Please refer to our FAQ for information regarding purchase of this item.
NOTE: THIS RIFLE DOES NOT SHIP WITH A MAGAZINE. MAGAZINE SOLD SEPARATELY.
Please refer to our "FAQ on Desert Dirt Color (DDC)" for more information.
